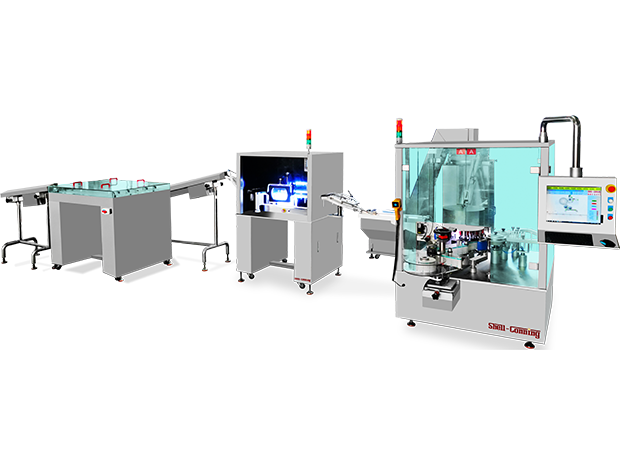

It is mainly suitable for automatic torsion bar labeling after filling and sealing mallet with disposable syringes.，Stable production capacity of the whole machine can reach 200 pieces per minute
+86-13632106869It is mainly suitable for automatic torsion bar labeling after filling and sealing mallet with disposable syringes.，Stable production capacity of the whole machine can reach 200 pieces per minute；

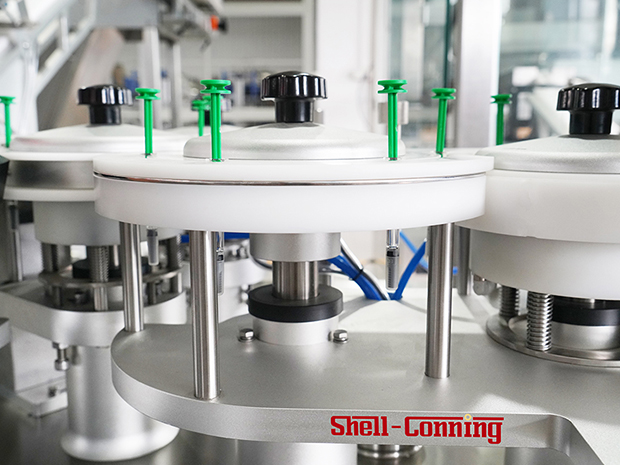

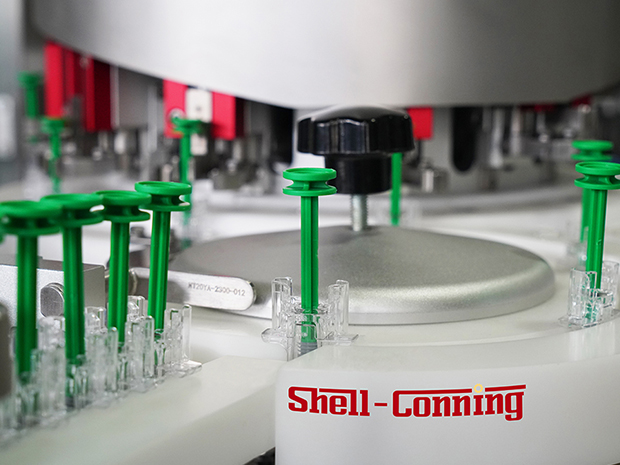

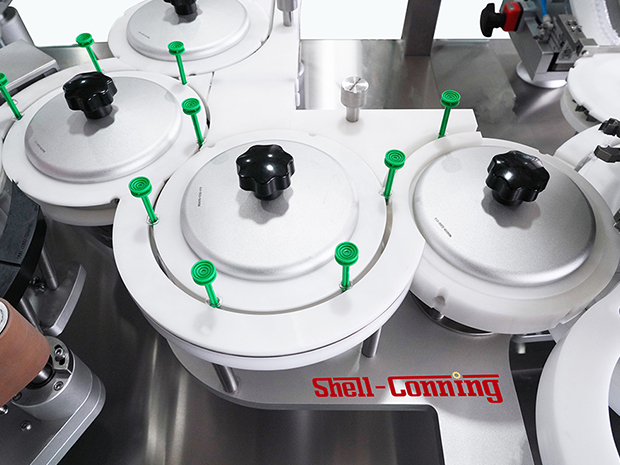

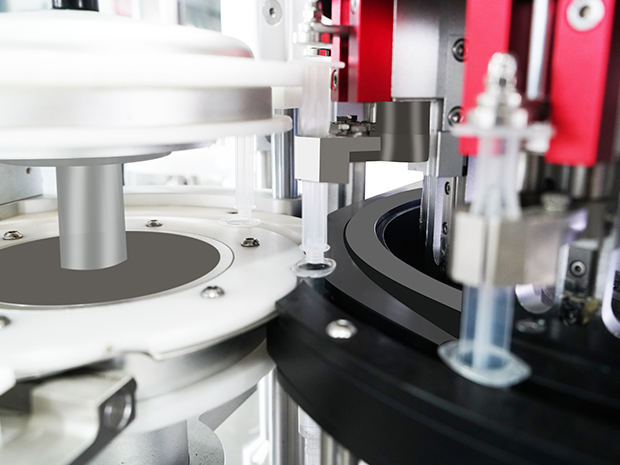

Capable of synchronously performing functions such as Syringe barrel nest take off mechanism, push needle rod unit , screwing rod , labeling,inspection & rejection mechanism ；
The structure of the machine is stable and the materials are elegant to be chose；
The auxiliary function configuration can be selected according to the actual production status of the customer, which can be operated online or separately.；
Optional spray coding, stamping coding, laser coding, etc., online label printing unit, and can be added with missing labeling, missing coding, coding quality detection, missing torsion bar detection and automatic rejection devices, etc；
| Version | Expension module 1/ Booster |
| Disposable syringe : | 0.5－10 ml |
| Syringe diameter : | 6－20 mm |
| Output speed per hour : | 12000 |
| Plunger rod (push rod ) dimensions : |  |
| Label size : |  |
| Label circle : |  |
| S/No. | Item | Parameters | Remark |
| 1 | Speed of whole machine | ≦200 pieces per minute | Related to the Needle rod & booster size |
| 2 | Syringe Size | 1-10ml syringes Ø6－20mm | Corresponding parts need to be replaced for different diameter tubes. |
| 3 | Labeling Accuracy | ±0.5mm | Not including error of the paste & label |
| 4 | Speed of label sending out | ≦60meters/minute | |
| 5 | Label roll | inner diameter：76mm, | |
| outer diameter：320mm | |||
| 6 | Label specifications: | （L）15－100 （W）10－80 mm | |
| 7 | Power | 220V±5% 50/60Hz ( customized by customer ) and 4.5KW | |
| 8 | Machine Outer Size (mm) | About（L）2600mm × （W）100mm × (H)1600mm | For reference only. Please confirm the size of the final plan |
