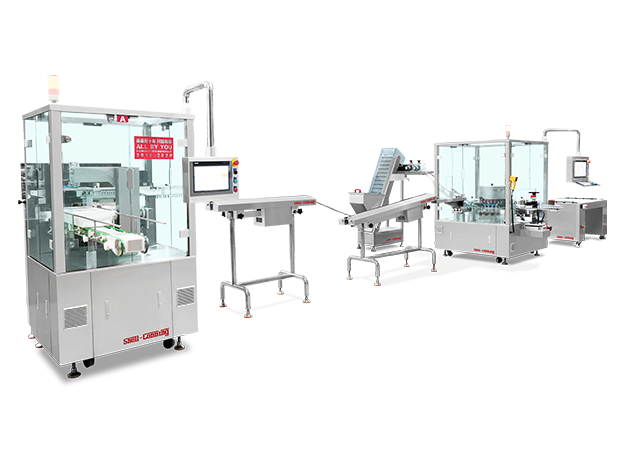

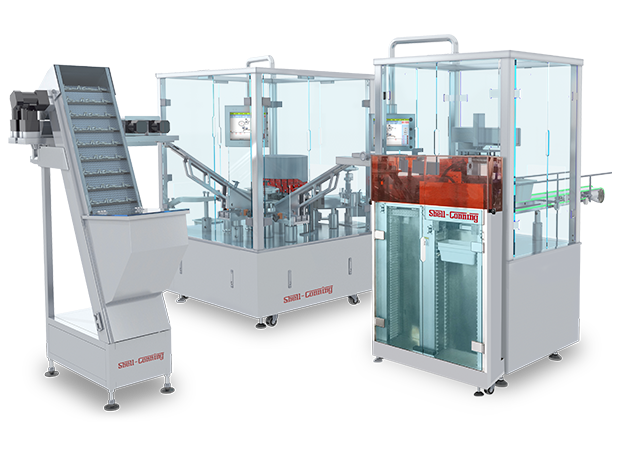

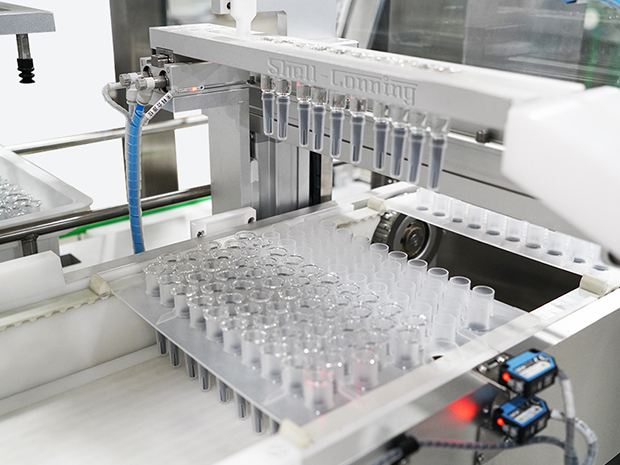

The automatic needle tube nesting and automatic rod sorting machine of the prefilled syringe are connected in line, which can automatically complete the functions of needle tube nesting, push rod feeding, combined booster, combined torsion bar, combined safety device and labeling. The servo precise torque control ensures that the rubber plug does not shift during the rod rotation process.
+86-13632106869Feeding part: S-shaped feeding slideway, effectively reducing the impact of the syringe conveying process
(Patent No.: ZL 2019 2 0881928.3)

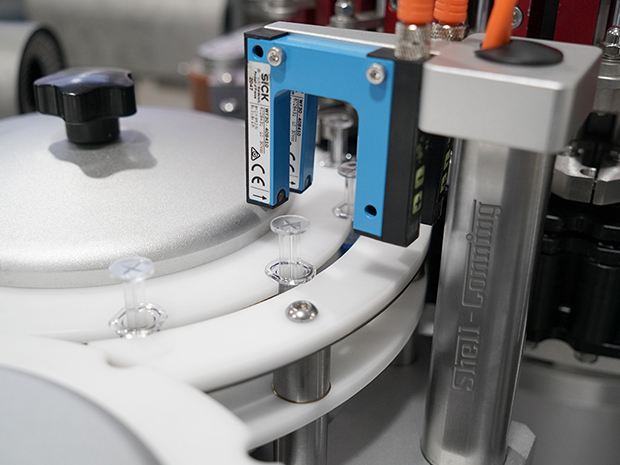

Feeding star wheel: The double-layer star wheel structure is used to feed the syringe and the needle bar at the same time to ensure that the syringe and the needle bar are concentric
(Patent No.: ZL 2019 2 0890288.2)

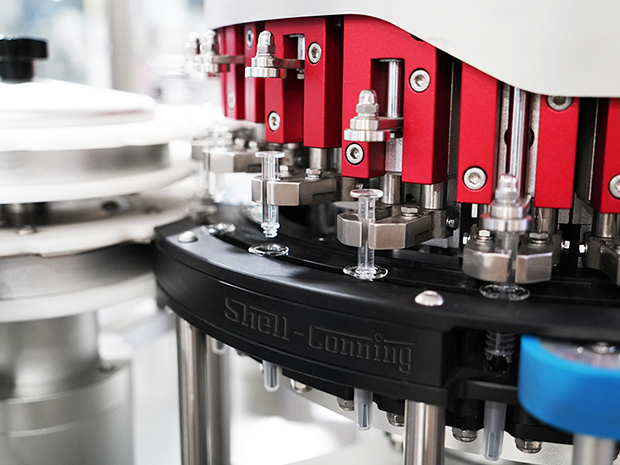

Main star wheel part: The combined cam mechanism is used to realize the automatic lifting and opening and closing of the needle bar clamp
(Patent No.: ZL 2019 2 0881864.7)
Rotary rod: An independent torque servo motor is used to detect the torque between the syringe and the needle bar to prevent the twisting rod
transition; multiple groups of wheel-type structure design can automatically adapt to different diameters; online torque detection device can
monitor the torque of the rotary rod in real time. (Patent No.: ZL 2017 0571422.8)
Optional 360° all-round detection system: plug twist detection, three-stage printing quality detection, missing label detection, push rod high and low position detection, needle cap detection, unqualified rejection confirmation system, feed overpressure detection, alarm emergency parking system (Patent No.: Z0Z0SR0963662)
Dimensions: (L) 2208 (W) 1420 (H) 1948mm
Material size: diameter 1ml-30ml
Labeling speed: 400bpm
Labeling machine accuracy: ±0.5mm
Labeling speed: 60m/min
Label specifications: (L) 15-100 (W) 10-80mm
